PACWIRE EXTRA SERIES FOAM CUTTING MACHINE

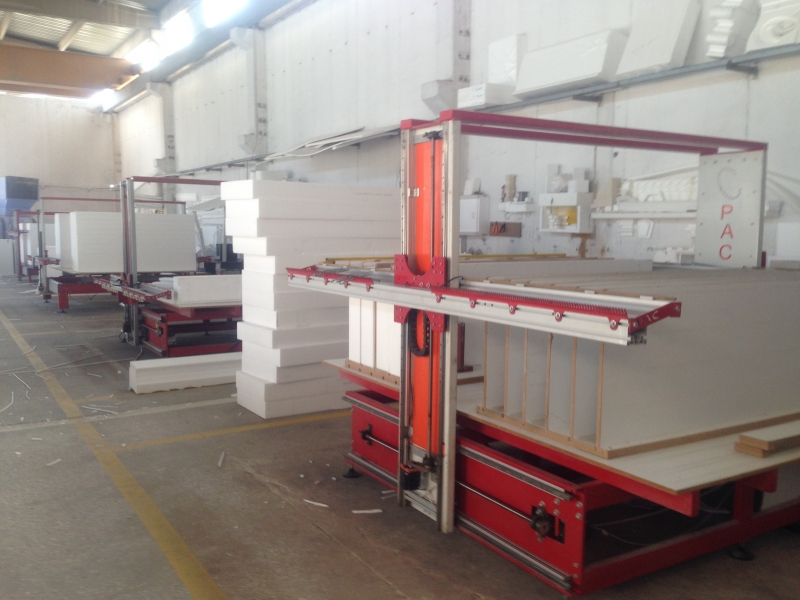

PacWire Extra series CNC foam cutting machines are powerful and efficient machines.

Steel body construction and linear guideway system allows smooth cutting with high capacity, for which they are preferrable among foam facade profile producers.

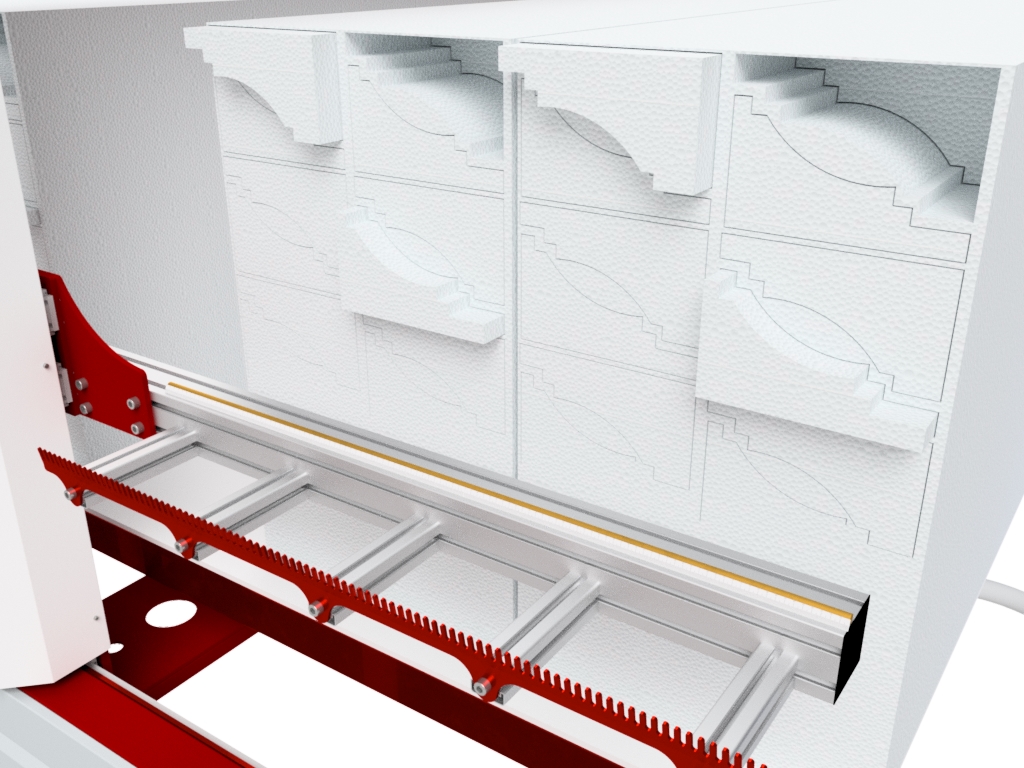

Kiosk type control panel, powerful axis arms and screw ball drive system allow precise and efficient cutting of various products, like facade profiles and cornices.



All axes have limit switchers and 2 high-torque hybrid stepper motors.

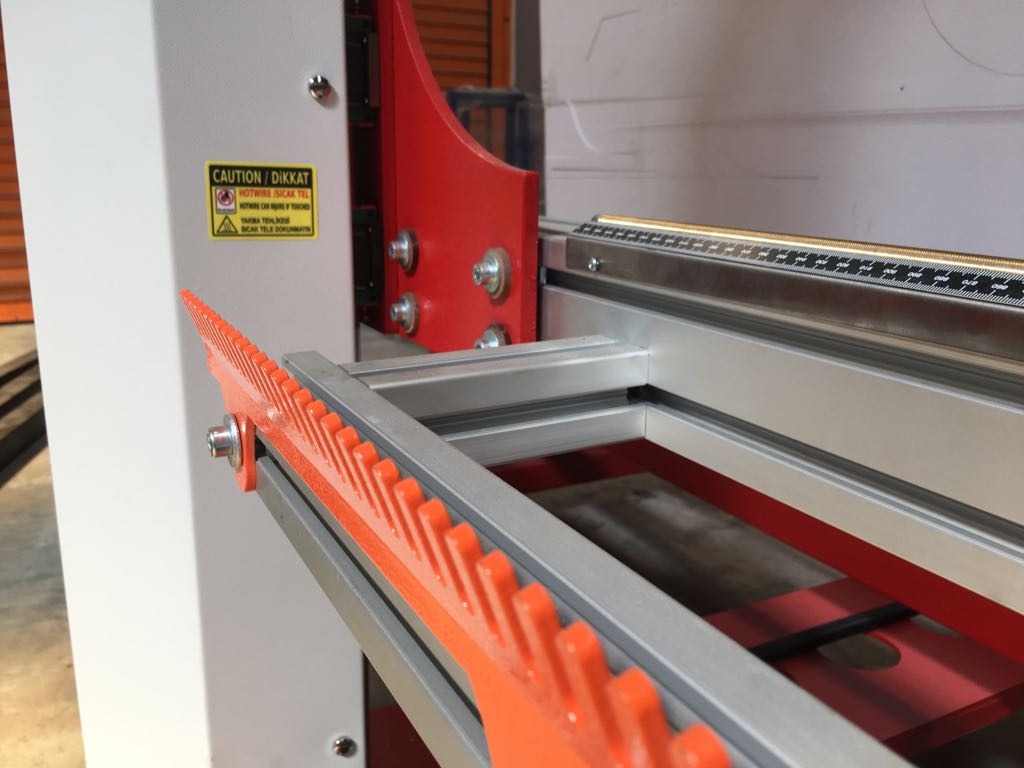

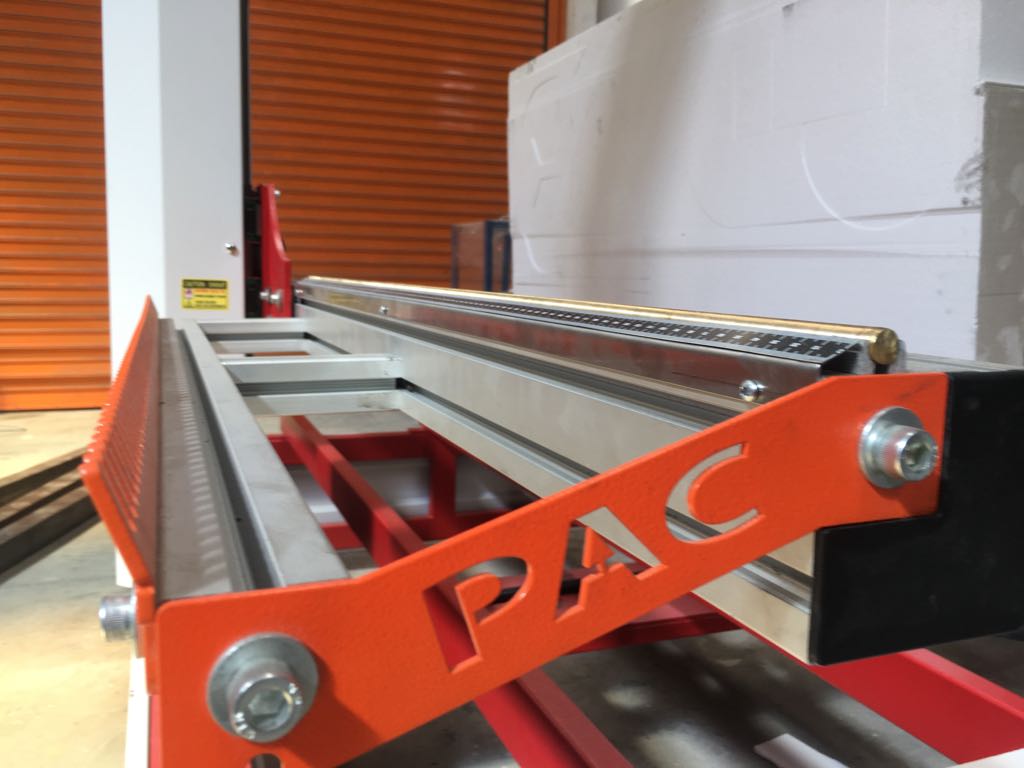

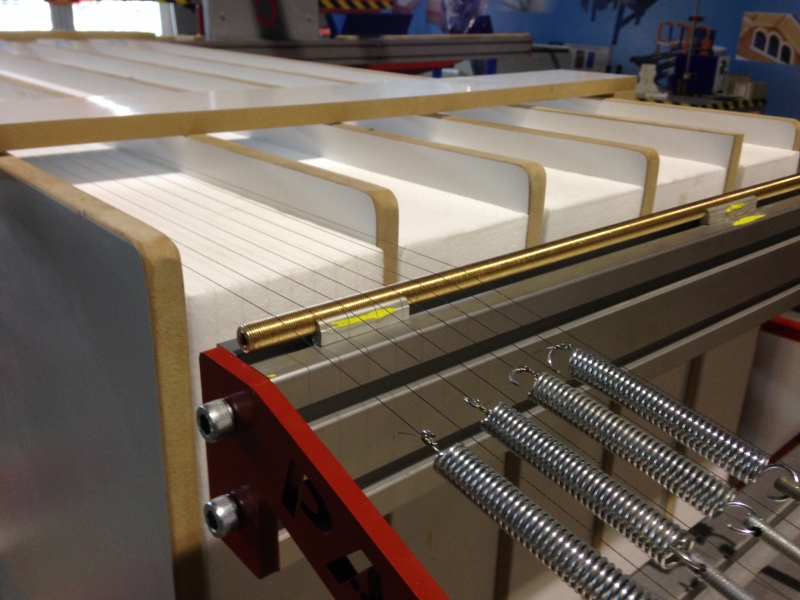

Wire holding system allows easy and fast wire change or wire addition for cutting thickness adjustment.





Areas of use:

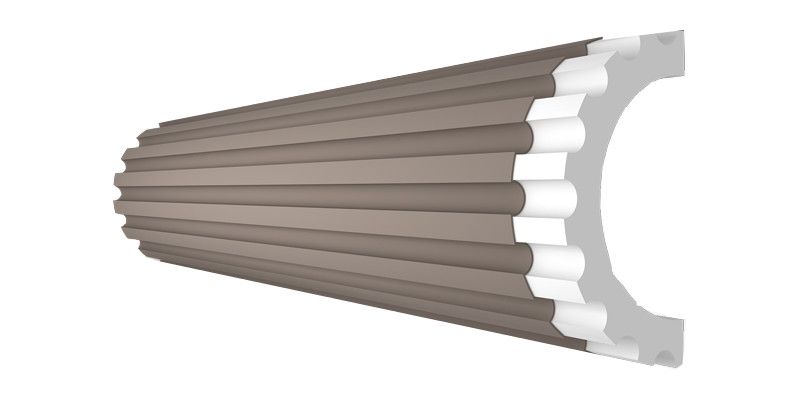

Foam facade decorative products

Sizing EPS foam blocks

Decorative coating

Foam boards

Decorative letters and texts







Technical specifications:



Model

1313

2113

Net Working Space

X: 1300mm

Y: 1300mm

Wire length: 2100mm

(Other lengths are possible)

X: 2100mm

Y: 1300mm

Wire length: 2100mm

(Other lengths are possible)

Body Construction

Milled steel body

Milled steel body

Guideway System

25 type linear guideway + HGW 25 type wide carrier

25 type linear guideway + HGW 25 type wide carrier

Drive System

X: 2520 Ball screw

Y: 2005 Ball screw

X:2520 Ball screw

Y:2005 Ball screw

Working Table

20mm MDF table

20mm MDF table

Heater

3.2 kW 80V 40A

3.2 kW 80V 40A

Number of wires



0,20mm - 30 wires

0,30mm - 20 wires

0,40mm - 15 wires

0,50mm - 10 wires





0,20mm - 30 wires

0,30mm - 20 wires

0,40mm - 15 wires

0,50mm - 10 wires



Axes motors

Nema34 High-torque stepper motor

Yüksek Torklu Step Motor Nema34

Control System

PC based USB CNC

Pc Tabanlı Usb Cnc

Block cutting capacity



500mm*1000mm*2000mm

Horizontally: 2 blocks (single and multiple wires)

Vertically: 4+4 = 8 blocks (single wire for each block)

or 3+3 = 6 blocks (multiple wires for each block)







500mm*1000mm*2000mm

Horizontally: 2 blocks (single and multiple wires)

Vertically: 4+4 = 8 blocks (single wire for each block)

or 3+3 = 6 blocks (multiple wires for each block)



Other feautres

Kiosk type control panel

Limit switches

Cable carrier

Adjustable wire holder



Kiosk type control panel

Limit switches

Cable carrier

Adjustable wire holder
