PacWire SD Foam Cutting Machines

PacWire SD Series Foam Cutting Machine

PacWire series machines are fast, easy to use and widely preferred among facade profile producers.

The main body of the machine is manufactured using steel and aluminium materials.

Due to its aluminium body, mass cutting could be easily achieved.

Axes movements are performed by pulleys that don’t need maintenance.

In addition, precise cutting could be achieved by the use of ball screws of the axes.

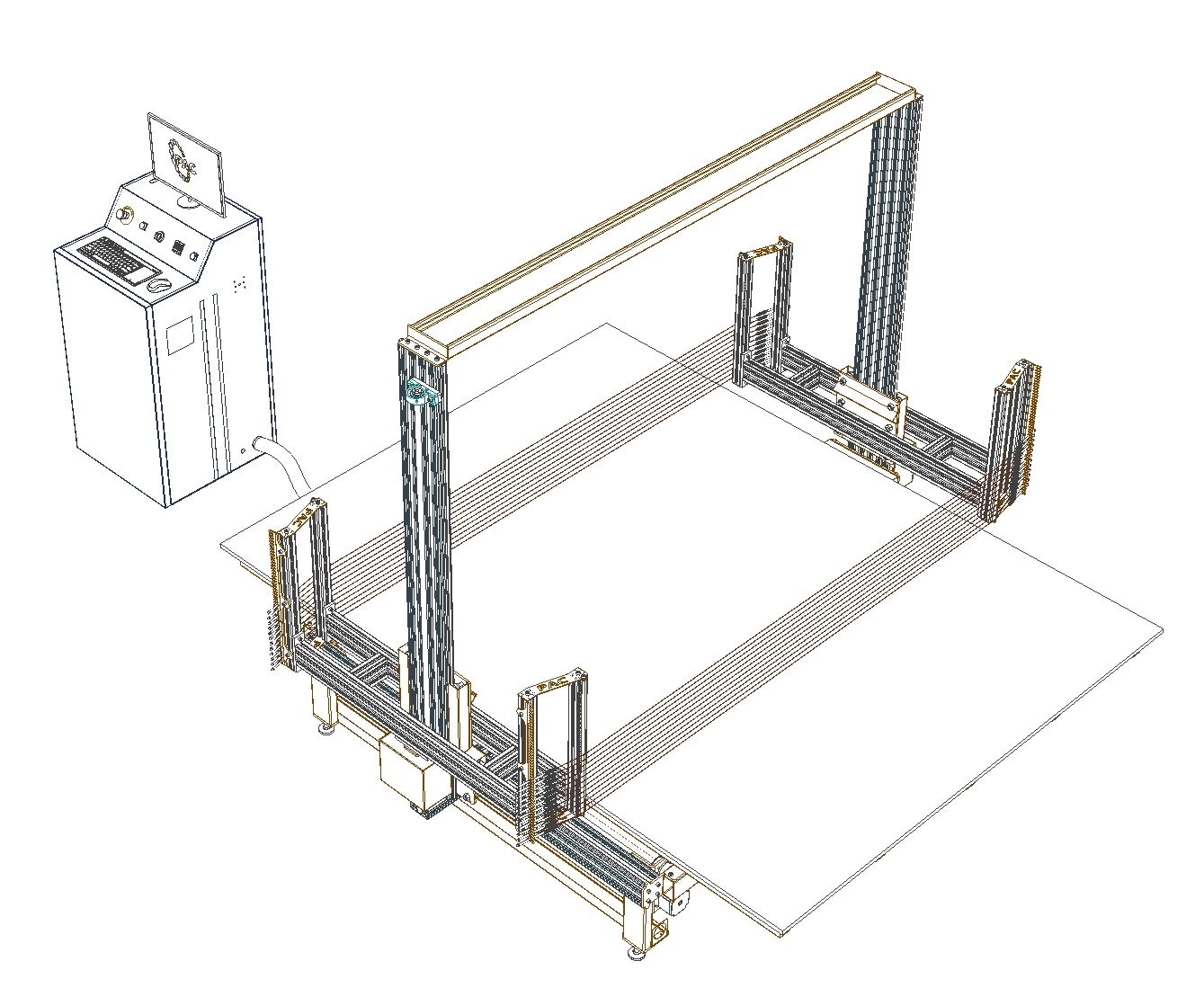

Kiosk type control panels are used.

Cable carriers are used to protect the cables on Y-axis.

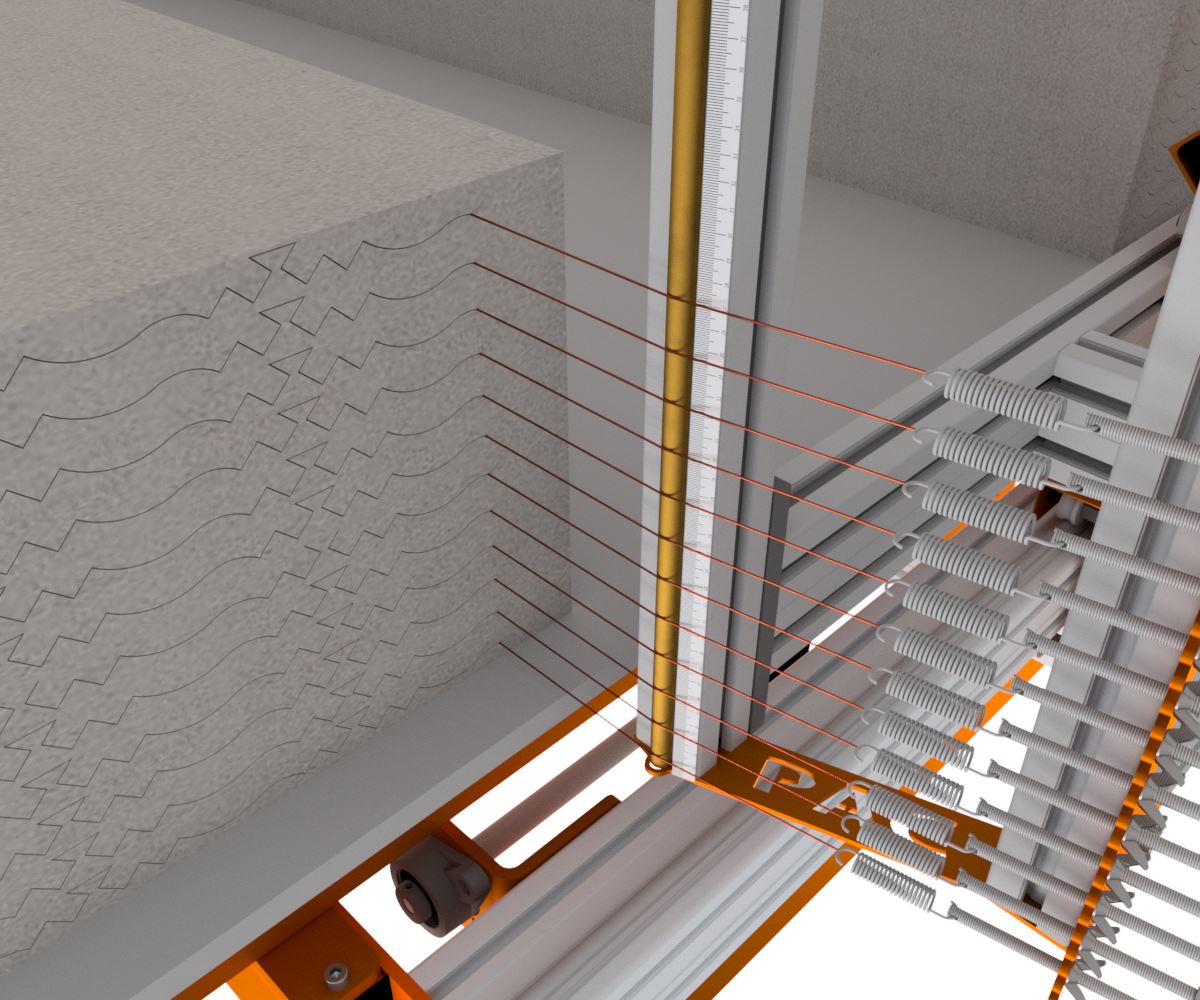

Easy and fast wire adjustment system.

Cutting speed and wire temperature are adjustible even while machine operates.

Could be paused and restarted at any point of machine operation.

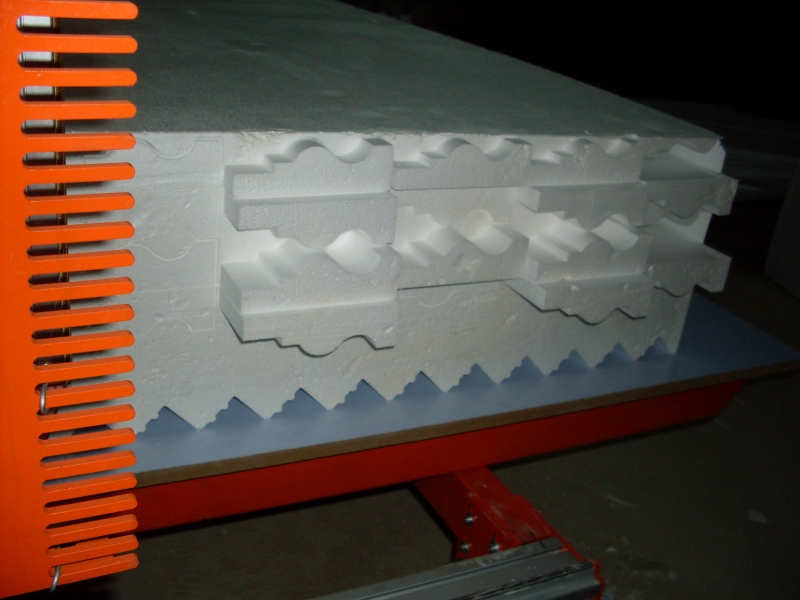

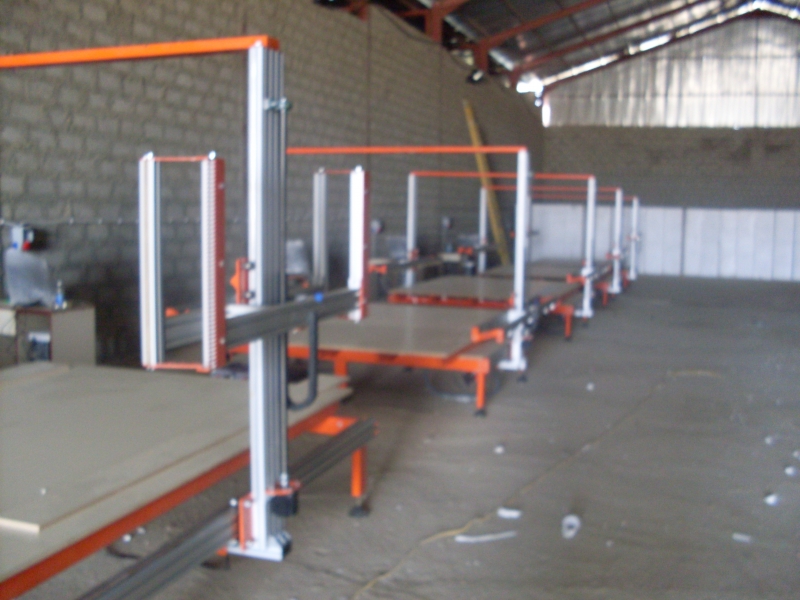

Hundreds of PacWire series machines all over the world are used for facade profile production.

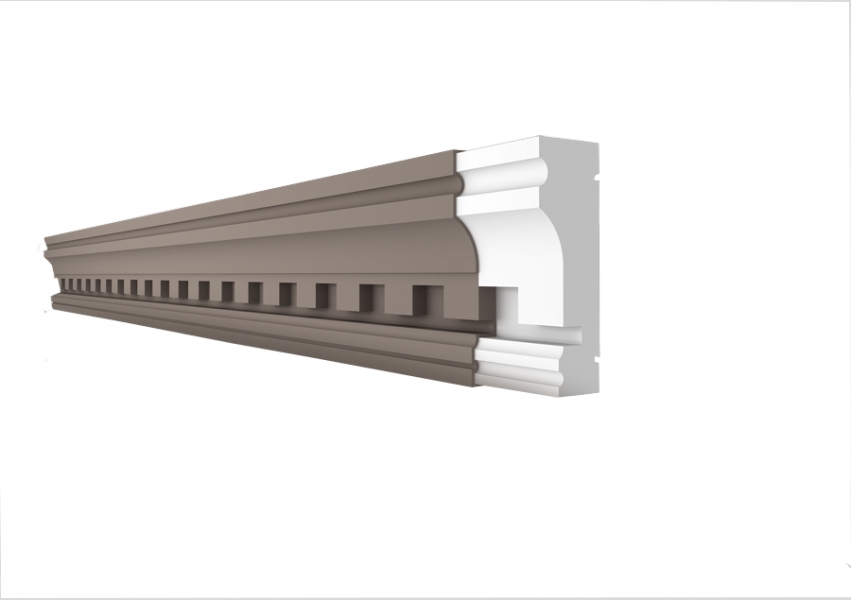

The most wide use is for the cornice and interior facade decoration applications.




Suitable model formats:

dxf, dwg, plt, Nc




Technical specifications:



Model

1313

2113

Net Working Space

X:1300mm

Y:1300mm

Wire length:2100mm

(Other lengths are possible)

X:2100mm

Y:1300mm

Wire length:2100mm

(Other lengths are possible)

Body Construction

Aluminum sigma profile + steel supports

Aluminum sigma profile + steel supports

Guideway System

LFR 5201 Screw guideway

LFR 5201 Screw guideway

Drive System

X,Y:2005 Ball screws

X,Y:2005 Ball screws

Working Table

20 mm MDF table

20 mm MDF table

Heater

3.2 Kw 80V 40 A

3.2 Kw 80V 40 A

Number of wires




0,20mm - 30 wires

0,30mm - 20 wires

0,40mm - 15 wires

0,50mm - 10 wires






0,20mm - 30 wires

0,30mm - 20 wires

0,40mm - 15 wires

0,50mm - 10 wires



Axes motors

High torque stepper motor Nema34

High torque stepper motor Nema34

Control System

PC based USB CNC

PC based USB CNC

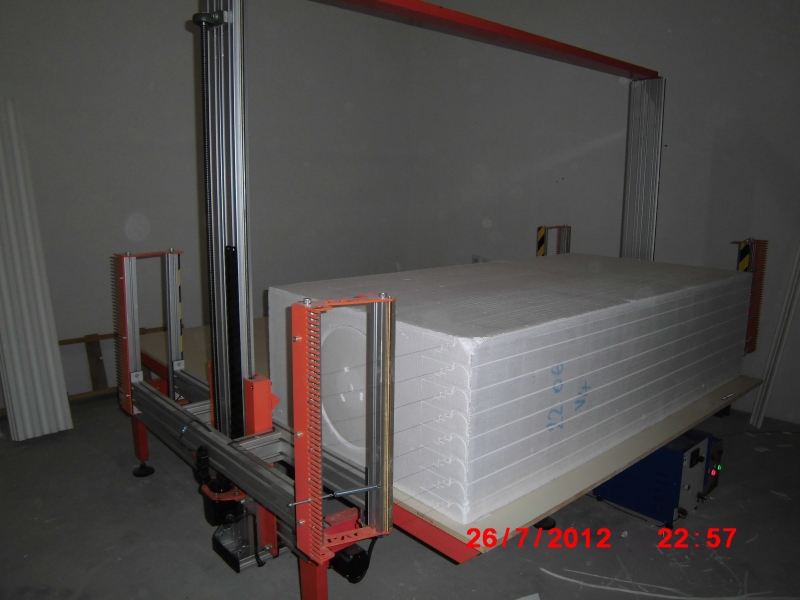

Block cutting capacity

500mm*1000mm*2000mm

Horizontally:2 blocks

Vertically:4 blocks

500mm*1000mm*2000mm

Horizontally:2 blocks

Vertically:4 blocks

Other specifications

Kiosk type control panel

Limit switches

Cable carrier

Adjustable wire holder

600mm+600mm vertical wire holding area

Kiosk type control panel

Limit switches

Cable carrier

Adjustable wire holder

600mm+600mm vertical wire holding area
