Arc and Base Cutter

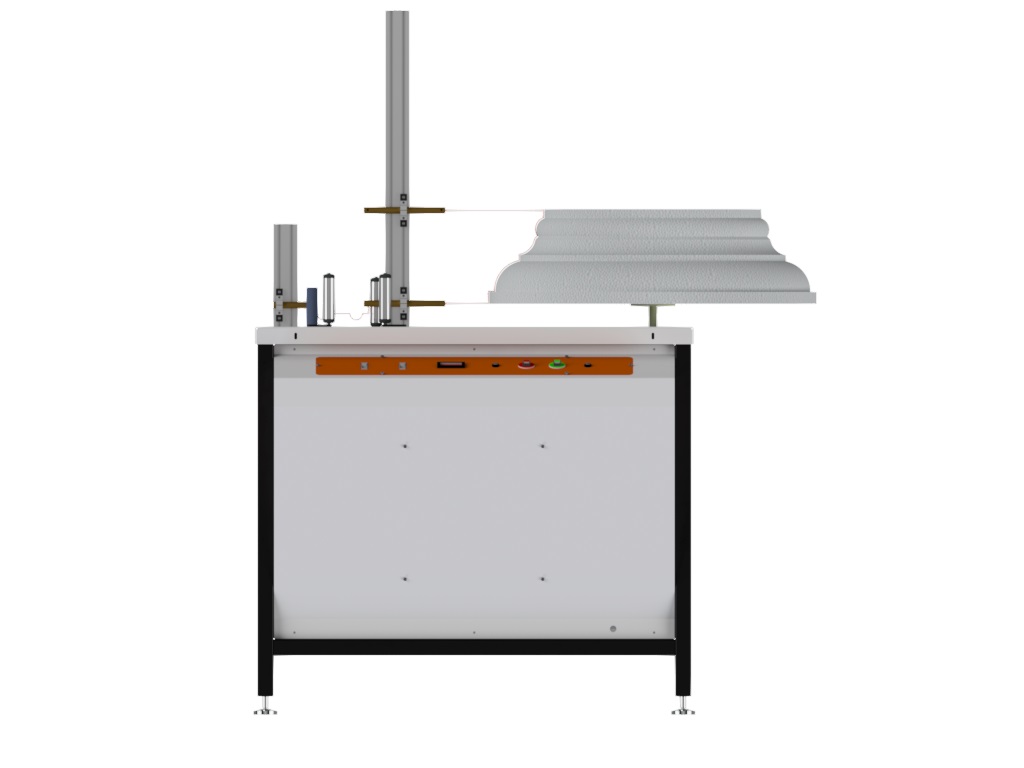

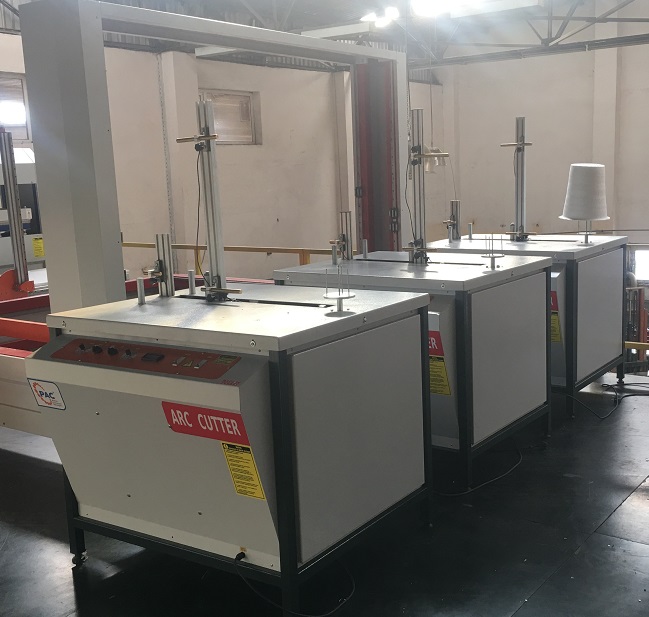

PROFILE ARC AND BASE CUTTING MACHINE

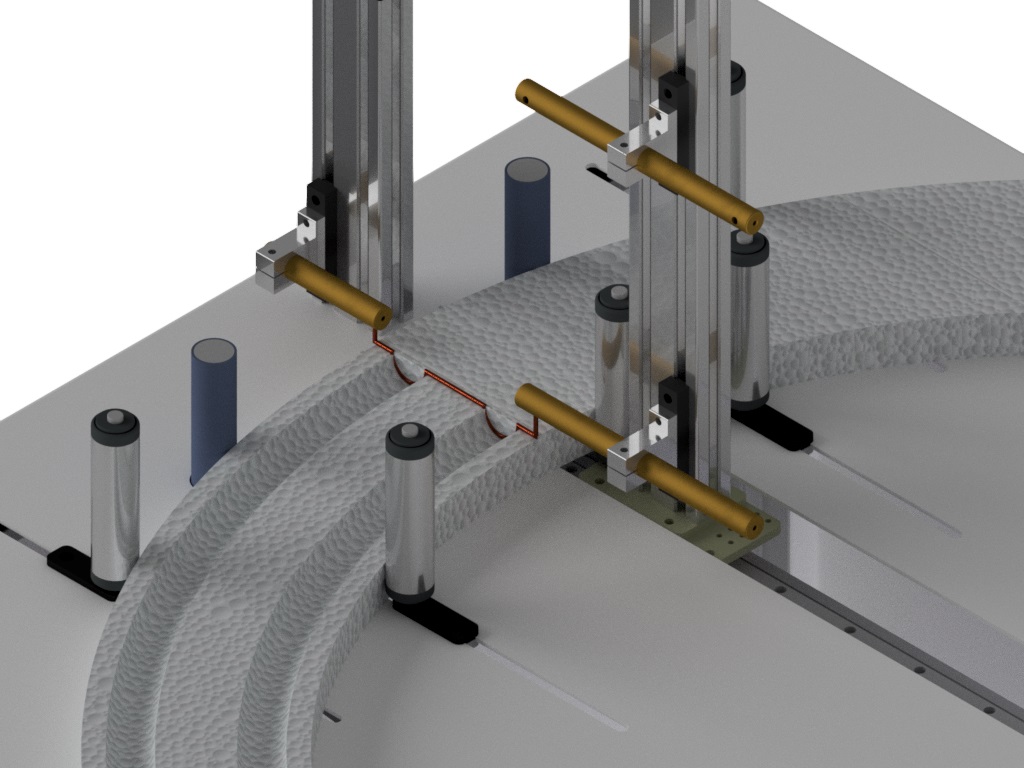

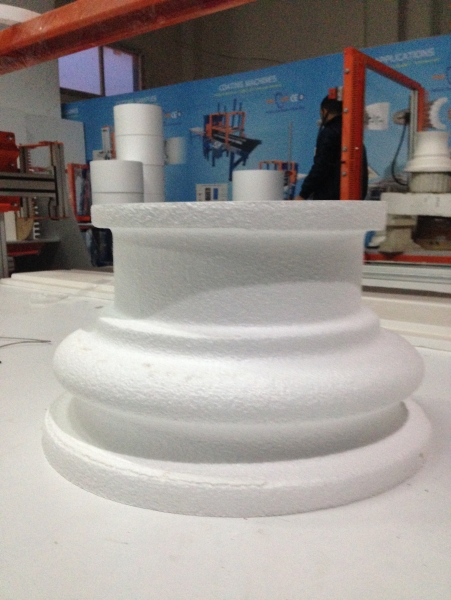

This machine could be used to cut curved profiles, such as arcs and bases.

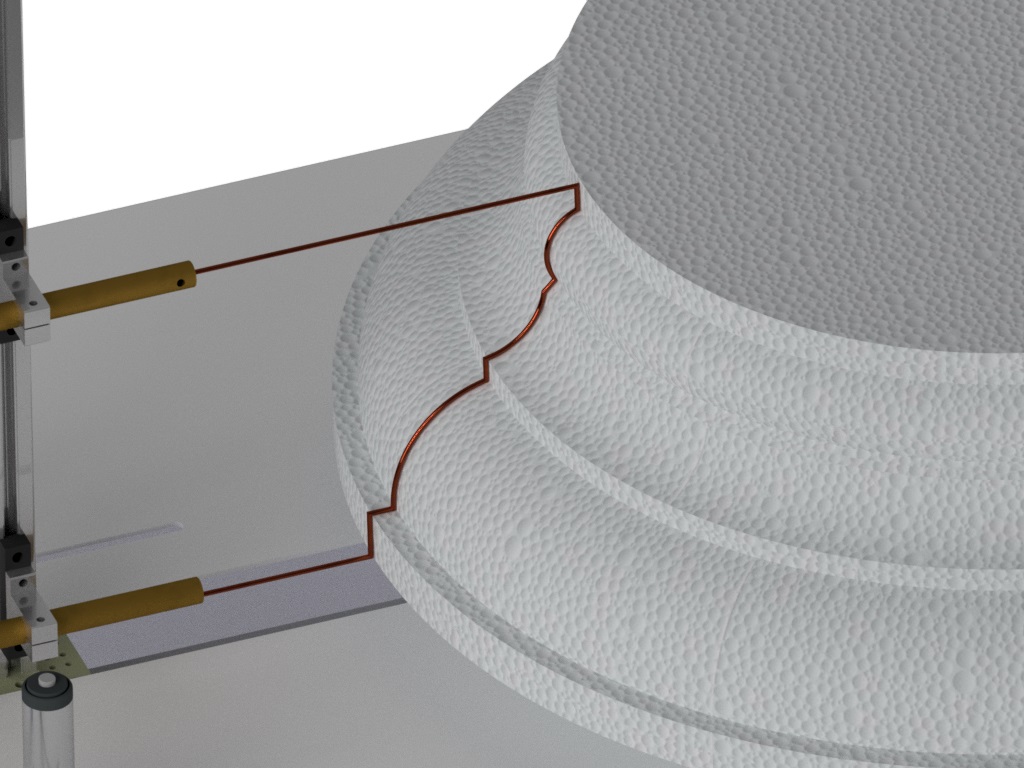

The needed shape is adjusted on 1.5 - 2mm resistance wire, which is connected to the machine and cut by circular movements.

Shape adjustment is a very simple process.

Machine has two modes of operation – manual and automatic.



TECHNICAL FEATURES



Working Table

1200*1000mm

Max  Dimension of   Column

Max. Dimension  of  Arc



Maks. Diameter:1000 mm  Maks. Height:700 mm

Widht : 250 mm Height :200 mm Lenght: No Limit

Lenght May Limited Depent Diameter of Arc

Wire Diameter

1.5 - 2mm

Wire Length

1200mm

Movement System

Linear guideway

Drive System

Trigger belt
